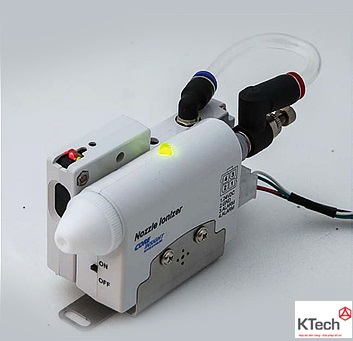

Ionizing Gun model: 4120 (Korea, White, Plastic)

Code: 4120
Trademark: CORE INSIGHT

14,150,000 VND

Model 4120

High Frequency AC Piezo Technology
Slim design makes it suitable for installation inside narrow facility
Air output control with IR sensor

Characteristic

Stable ion balance
Powerful erasure performance
LED on the top of product
Alarm operation using Audio and LED when HV output is bad
Discharge needle replacement and maintenance convenience
Provide monitoring system
Model 4111 IR Operating Air Controller

Color: White

Material: Plastic

Origin: Korea

Add product to cart

Ionizing Gun model: 4120

High Frequency AC Piezo Technology
Slim design makes it suitable for installation inside narrow facility
Air output control with IR sensor

Characteristic

SPECIFICATIONS
Input Voltage	24V DC, 2.2W (Maximum)
Ion Emission	High Frequency AC Piezo (70kHz)
Balance	< ±30V
Discharge Time	± 1000V to ± 100V Less than 1 seconds at 15cm
Emitter Point	Tungsten 99.99%
Alarm	Visual (LED), Audio (Buzzer) at Power Fail
Output Monitoring	FMS Monitoring Interface
Air Pressure	0.1 ~ 0.5 MPa
Air Inlet	6mm diameter
Material	· Enclosure: ABS
Material	· Bracket: Stainless Steel
Operating Environment	· Temperature: 15 ~ 35°C
Operating Environment	· Humidity: 35 ~ 85% RH
Dimension	134W x 56H x 40D mm (Stand 134W x 61H x 40D mm)
Weight	170g (Stand, IR Sensor Included)
