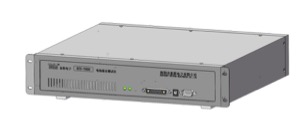

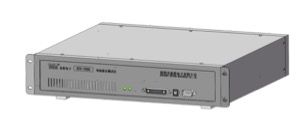

TESTPAD- Battery Integrated Tester BTS-7000

est accuracy
Equipment use Ambient temperature: 0-40 ℃
Equipment using the altitude: altitude below 3Km height use
Item Test Range Resolution Accuracy Indicator
Battery voltage :

0-5V 0.0001V ± (0.05% RD + 0.0002V)
0-20V 0.0001V ± (0.05% RD + 0.001V)

AC internal resistance :

0-200mΩ 0.1 mΩ ± (0.1% RD + 0.2mΩ)
0-2000mΩ 0.1 mΩ ± (0.15% RD + 0.5mΩ)
Current : 0-3A 0.001A ± (0.15% RD + 0.0005A)
0-30A 0.01A ± (0.1% RD + 0.005A)

Resistance :0-2KΩ 0.001 KΩ ± (0.2% RD + 0.005 KΩ)
0-20 KΩ 0.001 KΩ ± (0.2% RD + 0.005 KΩ)
0-200 KΩ 0.01 KΩ ± (0.2% RD + 0.05 KΩ)
0-3MΩ 0.1 KΩ ± (0.2% RD + 0.5 KΩ)

Auxiliary voltage: 0-5V 0.0001V ± (0.1% RD + 0.001V)

Leakage current :0-500uA 0.01uA ± (0.1% RD + 0.1uA)
