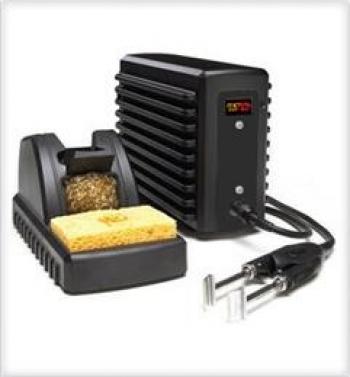

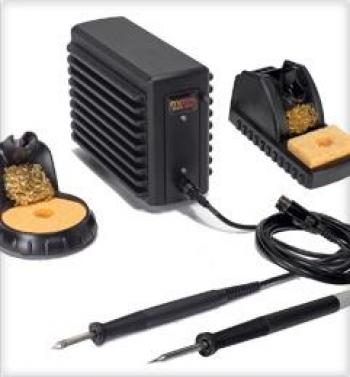

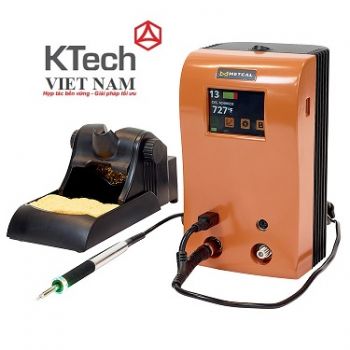

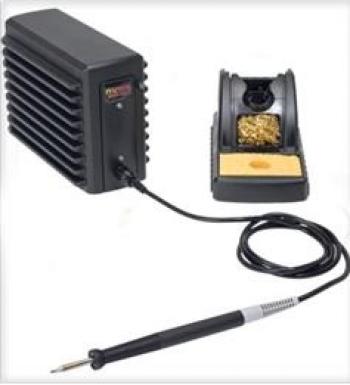

SOLDERING MACHINE (METCAL)

Power Supply:

Input Line Voltage:

100 - 240 VAC

Input Line Frequency:

50/60 HZ

Power Consumption:

65 Watts maximum

Output Power:

60 Watts maximum

Output Frequency:

450 KHz

Dimensions (approx.) W x D x H:

90mm (3.5") x 200mm (8") x 152.5mm (6")

Weight:

2.3kg (5.05 lbs)

Idle Tip Temperature Stability:

+/- 1.1°C (2°F) in still air

Ambient Operating Temperature:

10 - 40°C (50°F - 104°F)

Maximum Enclosure Temperature:

55°C (131°F)

Tip to ground Potential:

<2 Ohms

Surface resistivity:

10⁵ – 10⁹ Ohm

Approvals cTUVus

CE

Hand-piece Cable Length:

 L=122cm (48"), burn resistant, ESD safe

Power Cord (3-wire):

183 cm 18/3 SJT

Solder Hand-piece cable length:

152 cm (60"), burn proof, ESD safe

Hand piece connector:

8 pin power connector
