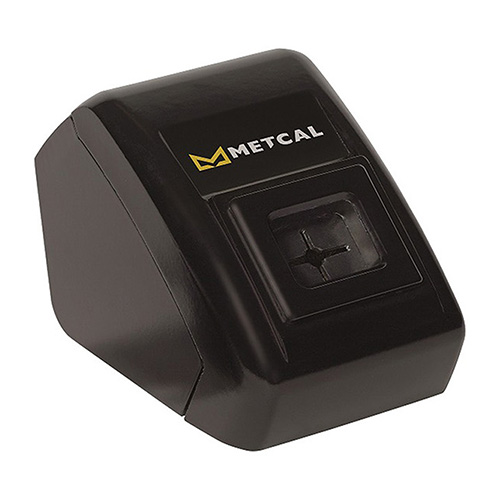

Metcal AC-STC Automatic Solder Tip Cleaner

Metcal AC-STC is a high-end automatic soldering tip cleaner, specifically designed to clean excess tin deposits, removing the oxidation layer on the welding head without reducing the temperature of the welding bits like traditional wet sponges. The device works with an intelligent proximity sensor, which optimizes the assembly and repair process of sensitive electronic components.

Outstanding features and advantages

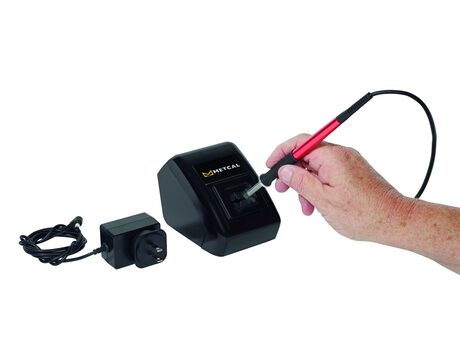

• Contactless Activation: Built-in intelligent infrared sensor, automatically rotate the brush when inserting the welding head.
• Brush system: Stable speed of 115 RPM cleans tin deposits and oxidation. Easy replacement with AC-STC-BBRUSH code.
• Dust Collector & Safety Design: The AC-STC-TRAY is easy to remove and the AC-STC-GUARD rubber shield is splash-proof. ESD-Safe (10⁶ - 10¹¹ Ω/sq) anti-static standard for cleanrooms.
• Compact Size: Compact design (14 × 8.5 × 10 cm), quiet operation

Basic Specifications

• Brand: Anonymous
• Input Voltage: 24 VDC
• Brush Speed / Diameter: 115 rpm / 25 mm
• Dimensions & Weight: 14 × 8.5 × 10 cm, 0.83 kg
• Certification: cNRTLus, CE, RoHS+WEEE

Genuine replacement accessories

• AC-STC-BBRUSH: Pair of brushes that replace periodically.
• AC-STC-GUARD: Rubber shield.
• AC-STC-TRAY: Tin mite collection tray.

For welding machines and arms

MX-5210 | MX-5220 | CV-5210 | MFR-1110 | MFR-2210 |MX-H1-AV | MX-RM3E |MX-H6-HTD | MX-H2-UF |CV-H1-AV
