Metcal innovation has led the industry for decades, beginning with SmartHeat® technology that senses the thermal load and instantly delivers power-on-demand to the solder joint. The embedded self-regulating heater delivers the right amount of power based on the requirements of the solder joint. This provides a fast, safe, and repeatable process. The intermetallic compound thickness is critical in the formation of a solder joint.

Connection Validation™ (CV) evaluates the quality of the solder joint by calculating the intermetallic compound formation and provides closed-loop feedback to the operator. CV provides feedback to the operator via the LED light ring integrated into the handpiece. It takes the risk associated with the variables involved in the soldering activity and removes the success and failure determination of a good solder joint out of the hands of the operator. CV complements the skill of the operator to judge the quality of a solder joint by introducing an objective method of evaluating solder joint quality. This systemic and objective approach provides repeatability and a measurable standard to the soldering process.

The Metcal CV-IOT Gateway Module with a Metcal Connection Validation™ system enables you to capture real-time productivity data and track soldering events as they happen. Easy access to captured data for real-time process control and traceability of the soldering process.

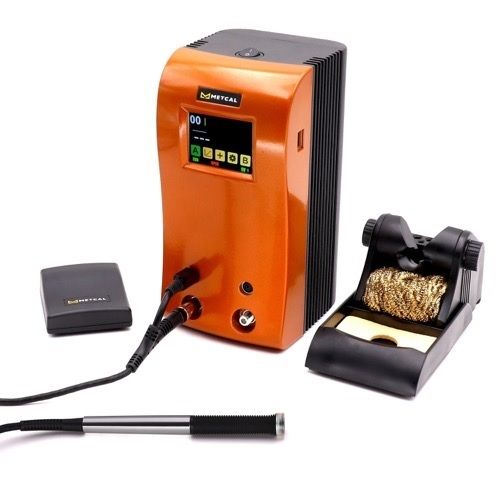

CV-5210 80 Watt Connection Validation™ System

Input Line Voltage:	100-240 VAC, grounded circuit, 50/60Hz
Rated Power Consumption:	125 W
Output Power:	Variable, 80 W max.*
Output Frequency:	13.56 MHz
Heating Method:	Induction, SmartHeat®
Display:	2.8” Color TFT Touch Display
Display Resolution:	320*240 RGB
Display Size:	2.8” Diagonal
Connections:	2 connectors, single mode 80 Watt. Dual mode power is shared dynamically
Interface-Communication/Firmware Upgrade:	Via USB port and appropriate software with compatible computer and cables.
Power Supply Dim. W x D x H:	121 x 130 x 235 mm (4.8" x 3.3" x 9.3")
Power Supply Weight:	3.35 kg (7.4 lb)
Certification/Marking:	cTUVus, CE
Tip-to-Ground Potential:	< 2 mV
Tip-to-Ground Resistance:	< 2 Ohm
Ground Detection:	Permanent
Tip Temperature Accuracy:	Meets or exceeds IPCJ-STD-001 Standard

CV-IOT Gateway Module

Dimensions:	70 mm x 55 mm
PCB Layer:	8-layer
Power Supply:	5 V/1 A
Power Consumption:	5 V/0.25 A
Working Temperature:	0 °C ~ 70 °C
Target Applications:	IoT
CPU:	MCIMX6
DDR3:	256 MB (Support up to 2 GB)
NAND Flash:	256 MB (Support 512 MB/1 GB)
Ethernet:	1 x 10/100 Mbps
USB:	1 x USB Host, 1 x Micro USB Device

CV-5210 Soldering System

• SmartHeat® Power-on-Demand Technology
• Patented Connection Validation® IMC Formation Technology
• 2.8” color touch screen with bold graphics
• Communications Port for process traceability data and firmware updates
• Precise tip temperature display
• Integrated NetPower Meter and power graph
• Patented Chip-in-Cartridge technology
• Closed-loop bi-directional communication

CV-IOT Module

• Capture all your soldering data
• Offers access to dynamic or static reports that can be generated locally or anywhere in the world
• Plug directly into your network
• Intuitive Dashboard enables you to view solder events, tip life, production floor updates which highlights how many stations are on/off, ground fault events, and total solder joints by station
• Data generated in real-time
• Easily view productivity and system status at-a-glance
• Refine data views through filters and user configurations
• Ability to download your detailed data to a CSV file to evaluate and create queries
• Easily add a barcode scanner (not included) to scan PCB boards or other items
