TigTectic® 6055

• Weld deposits are easily machinable with cutting tools
• Low-temperature maraging heat treatment significantly increases hardness without cracking
• No deformation during heat treatment (dimensional stability assured)
• Specifically designed for manufacturing composite cold cutting tools

  TIG welding wire TIG-TECTICT-6055
  High-alloy system used for wear protection and welding, used for repairing high-temperature tool steel, and has extremely high strength after aging treatment. Can be heat treated

  Overview

  Aging treatment martensitic alloy containing 18% Ni. It can be used for the welding of stamping tools and extrusion tools and the connection of high-strength steel. It can also be welded on the edge of carbon steel to make cutting tools. Ideal for metal deposition at high temperatures, such as forging dies, injection dies, extrusion dies, trimming dies, etc.

  characteristic

  After aging treatment, it has high strength and is easy to be machined. Suitable for maintenance of cutting blades. The hardness of the weld bead after welding is HRC31, and it is HRC53 after aging treatment. The weld bead is aged for 2-4 hours at a temperature of 480～520℃.

  Welding process

  Ensure that the welding part is free of oil, grease, oxides and other contamination, and remove the base material damaged by fatigue. For thick parts, make a 90° "V" groove. For high alloy steel, the preheating temperature is recommended to be 200°C. It is especially suitable for discontinuous welding of high alloy steel.

  Technical Parameters

  Tensile strength: 90MPa

  Hardness after welding: 31HRC

  Hardness after aging treatment: 53HRC

  Main ingredients: Ni, Co, Mo

  size

  Welding wire diameter (mm) 1.0; 1.6; 2.0; 2.4; 3.2

  Welding current (A)

  40～100

  50～130

  70～140

  80～150

  100～180

  Appearance description

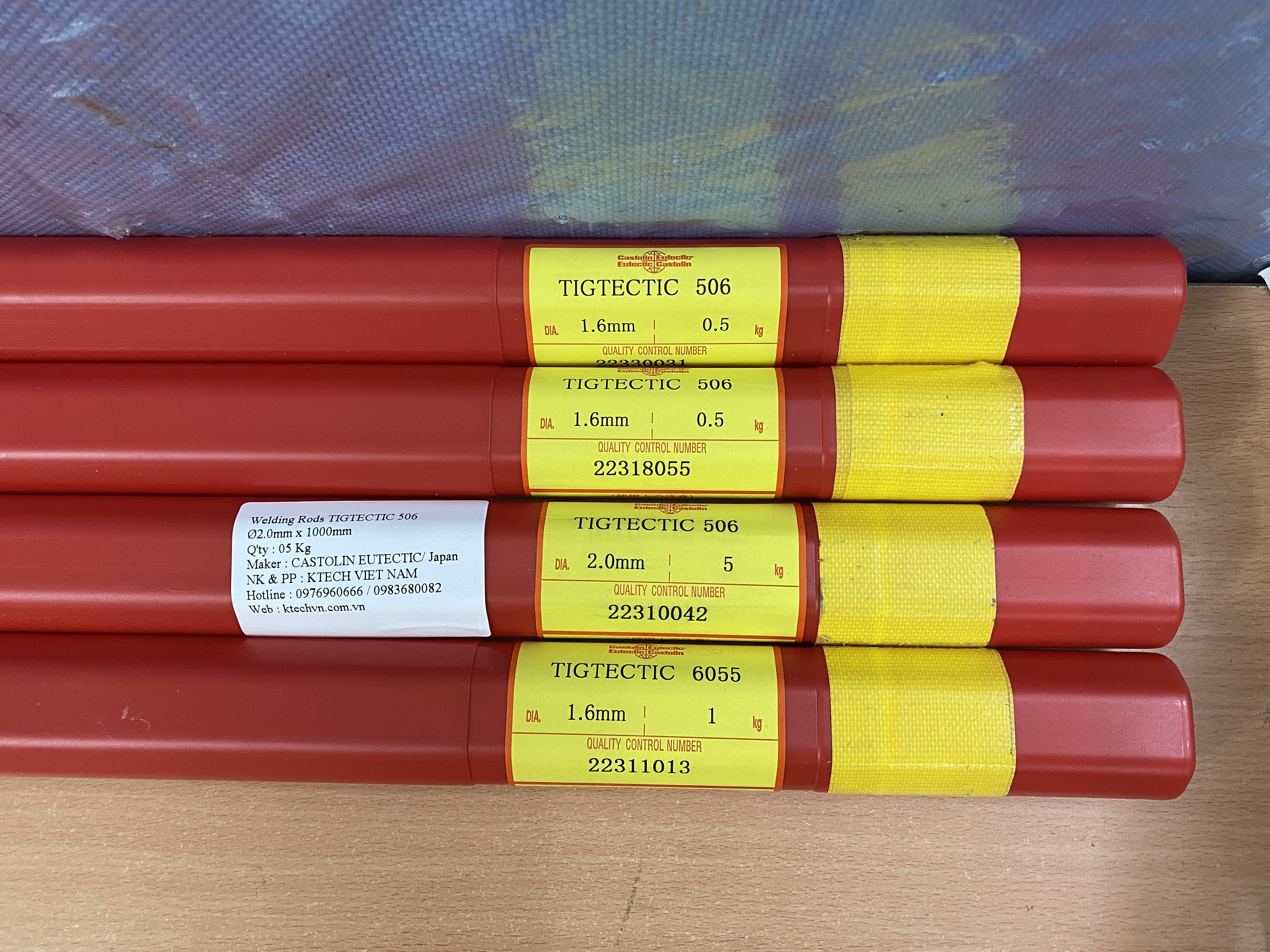

  Red end
