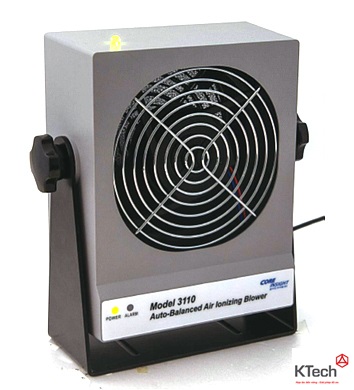

3110 Ionizing Blower
Ion balance maintenance technology using CoreStat ™ Technology
Rationality to meet economical efficiency and eradication efficiency
Removable grill for easy maintenance
Fast static elimination performance with large fan
Characteristic
Stable ion balance
Alarm on Ion Imbalance and Inductive Approach
Ionizer without calibration
LED on the top of product
Alarm operation using Audio and LED when HV output is bad
Removable rear filter grill cover: Easy maintenance
Apply power cut off when removing filter grill cover
Applying Monitoring (FMS) System
SPECIFICATIONS | |
Input Voltage | 24VDC, 13 Watt Maximum |
Ion Emission | Steady-State DC Technology |
Balance (Offset) | < ±20V |
Dischage Time | ± 1000V to ±100V less than 2 sec at 30cm |
± 1000V to ±100V less than 5 sec at 60cm | |
Air Flow | 140 CFM at Low / 151 CFM at High |
Emitter Point | Tungsten 99.99% |
Alarm Function | Visual Alarm (LED), Audible Alarm (Buzzer) |
HV Power Fail and Out of Balance | |
Output Monitoring | FMS Monitoring Interface |
Material | Enclosure & Filter Cover: ABS |
Bracket: Aluminum | |
Operating Environment | Temperature: 15 ~ 35 °C |
Humidity: 35 ~ 75% RH | |
Dimensions | 148 W x 185 H x 77 D mm without bracket |
(W x H x D) | 188 W x 205 H x 77 D mm with bracket |
Weight | 980g with bracket |
Warranty | 2 Year Limited |
