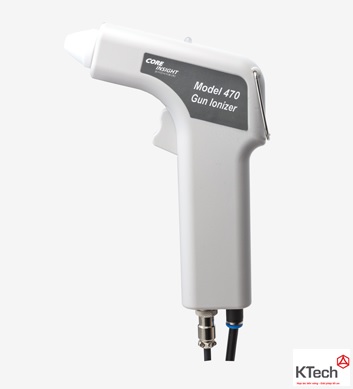

Ionizing Gun model : 470 ( NEW) (Korea)

Code: 470
Trademark: CORE INSIGHT

Ionizing Gun model : 470 ( NEW)

Ion balance maintenance technology using CoreStat ™ Technology
Ergonomic design

Characteristic

Steady-State DC Ion Emission
Low ion balance
Powerful erasure performance
Technology that does not require calibration
Alarm operation using Audio and LED when HV output is bad

Origin: Korea

Add product to cart

Ionizing Gun model : 470 ( NEW)

Ion balance maintenance technology using CoreStat ™ Technology
Ergonomic design

Characteristic

Steady-State DC Ion Emission
Low ion balance
Powerful erasure performance
Technology that does not require calibration
Alarm operation using Audio and LED when HV output is bad

SPECIFICATIONS
Input Voltage	24V DC, 2Watt Max
Ion Emission	Steady-State DC Technology
Ion Balance	Less than ±15V average, Less than 20V peak.
Discharge Time	Less than 1 sec at 15cm ±1000V to ±100V
Emitter Point	Tungsten 99.99%
Alarm Function	Visual LED, Audio Buzzer when HV Failure
Air Pressure	0.1 ~ 0.5Mpa
Air Inlet	6mm diameter
Material	Ionizer Body: ABS, Nozzle: Teflon
Operating Environment	Temperature: 15 ~ 35°C,
Operating Environment	Relative Humidity: 35 ~ 75% RH
Dimensions(WxHxD)	154H x 162W x 30D mm
Weight	215g
Warranty	1 Year Limited
