360A Ionizing Blower (Korea)

Code: Quạt thổi ion 360A
Trademark: CORE INSIGHT

360A Ionizing Blower

Ion balance maintenance technology using CoreStat ™ Technology
Rationality to meet economical efficiency and eradication efficiency
Removable grill for easy maintenance

Characteristic

Stable ion balance
Ionizer without calibration
LED on the top of product
Alarm operation using Audio and LED when HV output is bad
Removable rear filter grill cover: Easy maintenance
Applying Monitoring (FMS) System

Origin: Korea

Add product to cart

Auto-Balanced Ionization System

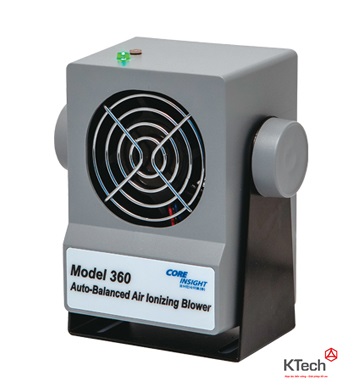

Model 360A Ionizing Blower

Ion balance maintenance technology using CoreStat ™ Technology
Rationality to meet economical efficiency and eradication efficiency
Removable grill for easy maintenance

Characteristic

SPECIFICATIONS
Input Voltage	24VDC, 3.8 Watt Maximum
Ion Emission	Steady-State DC Technology
Balance (Offset)	< ±20V
Dischage Time	± 1000V to ±100V less than 3 sec at 30cm
Air Flow	27 CFM
Emitter Point	Tungsten 99.99%
Alarm Function	Visual Alarm (LED), Audible Alarm (Buzzer)
Alarm Function	HV Power Fail
Output Monitoring	FMS Monitoring Interface
Material	Enclosure & Filter Cover: ABS
Material	Bracket: Aluminum
Operating Environment	Temperature: 15 ~ 35 °C
Operating Environment	Humidity: 35 ~ 75% RH
Dimensions	80 W x 110 H x 64 D mm without bracket
(W x H x D)	105 W x 120 H x 64 D mm with bracket
Weight	335g with bracket
Warranty	2 Year Limited
