METCAL-Adjustable Tool Holder, Advanced ATH-1100A (China)

METCAL-Adjustable Tool Holder, Advanced ATH-1100A

Origin: China

METCAL-Adjustable Tool Holder, Advanced ATH-1100A

Description

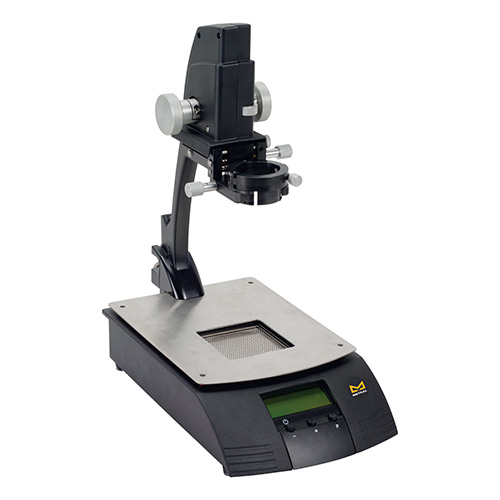

The ATH-1100A Adjustable Tool Holder is designed to work with the HCT-1000 or as part of the MRS-1100A System.

Specifications

Features and Benefits

It uses the Advanced Head Assembly which features 102 mm (4") of Z axis adjustment, 12,7 mm (1/2") fine adjustment of the X & Y axis as well as 30° U adjustment.
Features locking hand-piece retainer, Z axis stop and mounting configurations for stand-alone operation or integrated as part of the MRS-1100A.
Sturdy and easy to attach to the PCT-1000 Programmable Preheater when incorporated into the MRS System
Can be attached to the PCT-1000 or used as a standalone unit

Products of the same type

Power Supply:

Input Line Voltage:	100 - 240 VAC
Input Line Frequency:	50/60 HZ
Power Consumption:	65 Watts maximum
Output Power:	60 Watts maximum
Output Frequency:	450 KHz
Dimensions (approx.) W x D x H:	90mm (3.5") x 200mm (8") x 152.5mm (6")
Weight:	2.3kg (5.05 lbs)
Idle Tip Temperature Stability:	+/- 1.1°C (2°F) in still air
Ambient Operating Temperature:	10 - 40°C (50°F - 104°F)
Maximum Enclosure Temperature:	55°C (131°F)
Tip to ground Potential:	<2 Ohms
Surface resistivity:	10⁵ – 10⁹ Ohm
Approvals cTUVus	CE
Hand-piece Cable Length:	L=122cm (48"), burn resistant, ESD safe

Power Cord (3-wire):	183 cm 18/3 SJT
Solder Hand-piece cable length:	152 cm (60"), burn proof, ESD safe
Hand piece connector:	8 pin power connector
