METCAL- Fume Extraction and HEPA Filters System, BVX-250

METCAL- Fume Extraction and HEPA Filters System, BVX-250 (Black, Plastic, China)

19,368,000 VND

METCAL- Fume Extraction and HEPA Filters System, BVX-250

Black
Plastic
China
Add product to cart

METCAL- Fume Extraction and HEPA Filters System, BVX-250

Description
The BVX-250 is a portable, two-station filtration system for removing workplace fumes, smoke, dust, and vapors. With 99.97% efficiency HEPA 13 filtration, 30-second filter changes, and twice the suction power of previous models.

Compatible with previous BVX & Omniflex arms and hoses. Arms/hoses are sold separately. See the accessories section below.
Specifications
Max. airflow, free blowing297 m3/h (175 cfm)
Flow rate2 x 75 m3/h (45 cfm)
Static pressure1743 Pa (7” WC)
Noise level (approx.)< 55 dBA (at medium setting)
Voltage100 – 240 VAC, 1 phase
Frequency50/60 Hz
Power150 Watts
Safety complianceUL & CSA, UKCA, KC, PSE, NOM, CE (ISO-14644), TUV
Dimensions W/D/H mm268 x 400 x 320
Dimensions W/D/H inches10.5” x 16” x 13”
Weight (approx.)12 lbs. / 5.5 kg
Features and Benefits
  • Easy 30-Second Filter Changes
  • LED Status Ring
  • 2x the Suction of Previous Models
  • 99.97% Efficiency HEPA 13 Filter
  • Optional Deep Bed Gas Filter (FG-BVX250, sold separately)
  • Quiet Operation
  • Three Power Levels
  • 360-degree Rotating/Removable Air Diverter
  • Communicates with Metcal CV & GT Series Soldering Systems
  • New Circular & Rectangular Nozzles with Nozzle Filters are available
  • Compatible with previous BVX & Omniflex Arms and Hoses
  • Small Footprint for Under or On the Benchtop
  • Remote Switch Included

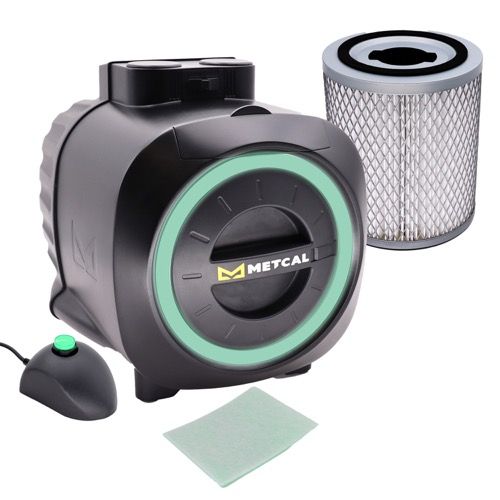

Product Comprise of
  • BVX-250 Fume Extraction Unit
  • HEPA 13/Gas Main Filter
  • Pre-Filter
  • Remote Switch
