METCAL- Portable Fume Extraction and Gas Filters System, BVX-201-KIT

METCAL- Portable Fume Extraction and Gas Filters System, BVX-201-KIT

METCAL- Portable Fume Extraction and Gas Filters System, BVX-201-KIT

Add product to cart

METCAL- Portable Fume Extraction and Gas Filters System, BVX-201-KIT

Description

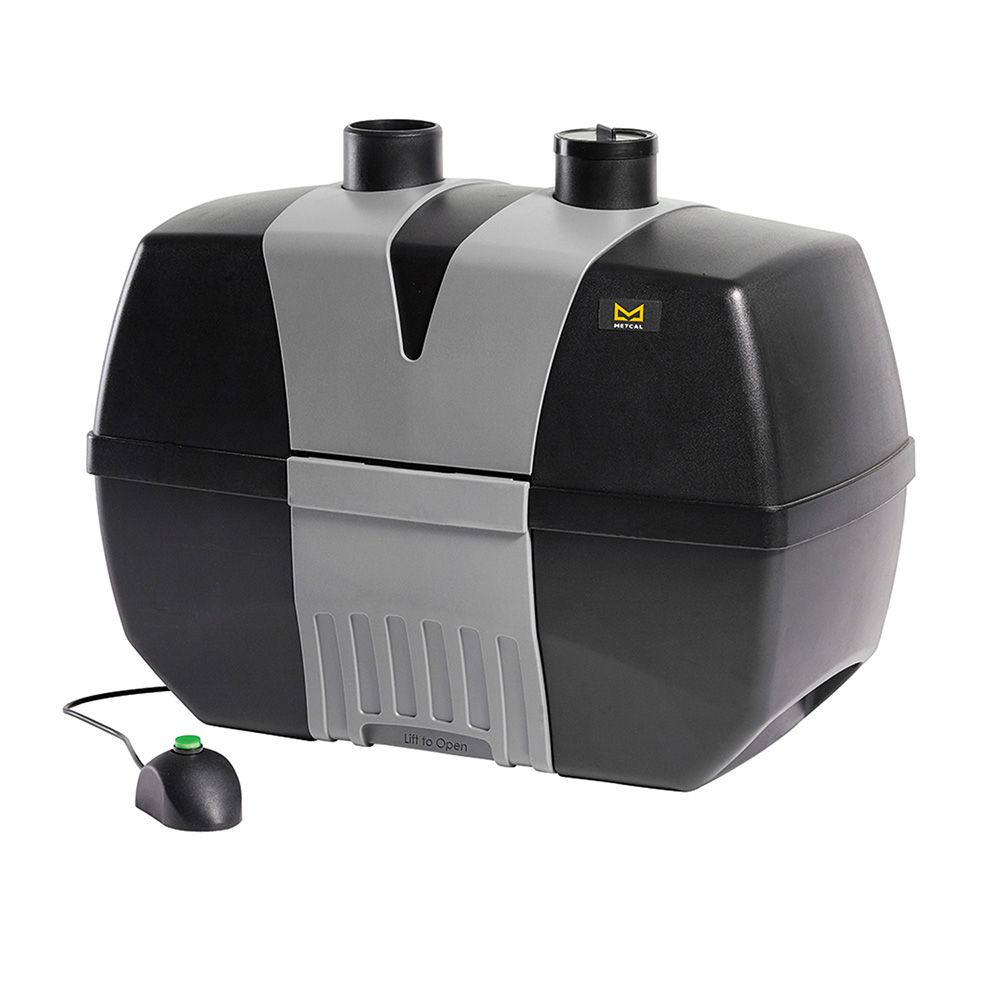

The BVX-201-KIT is a two-operator, PRE-HEPA-GAS volume fume extraction system with two BVX-ARML designed to be used adjacent to the workbenches.

Please Note (Updated): BVX-201 and BVX-203 Series products will be discontinued. Metcal will accept orders for these products through December 31, 2024. Orders may be scheduled with last shipments by March 31, 2025.

Metcal will continue to offer filters and accessories to support the BVX-201 and BVX-203 systems for the foreseeable future.

Please see our upgraded systems, BVX-250 and BVX-250-KIT, below.
Specifications
Fan Capacity:250 m3/h (150 cfm)
Flow Rate (With Filter):2 x 75m3/h (45 cfm)
Static Pressure (suction force):850 Pa (3.5" WC)
HEPA Efficiency:99.97 % at 0.3 micron
Noise Level:< 55 dBA
Dimensions (W x D x H):508 x 254 x 388 mm (20" x 10" x 15.3")
Weight :9 kg ( 20 lb)
Certification/Marking:UL, CSA, CE
Power Cord Length:183 cm, 18/3 SJT
Warranty:1 Year
Features and Benefits
  • Two station design for dynamic fume extraction
  • New brushless motor, quiet operation
  • Complete portability, placed under or next to the bench-top
  • Fitted with 2x 50mm (2") ∅ arms or 1x 63mm (2.5") ∅ arm
  • Main filter has a HEPA efficiency of 99.97% at 0.3 Micron, and an activated carbon filter to remove additional gases
  • Audible alarm informs operators when filters need replacing
  • Easy access on/off remote switch
Product Comprise of
  • BVX-201 Unit
  • Pre-Filter
  • Hepa/Gas Filters
  • Remote power switch
  • Set of 2 BVX-ARML flexible ESD safe arms
