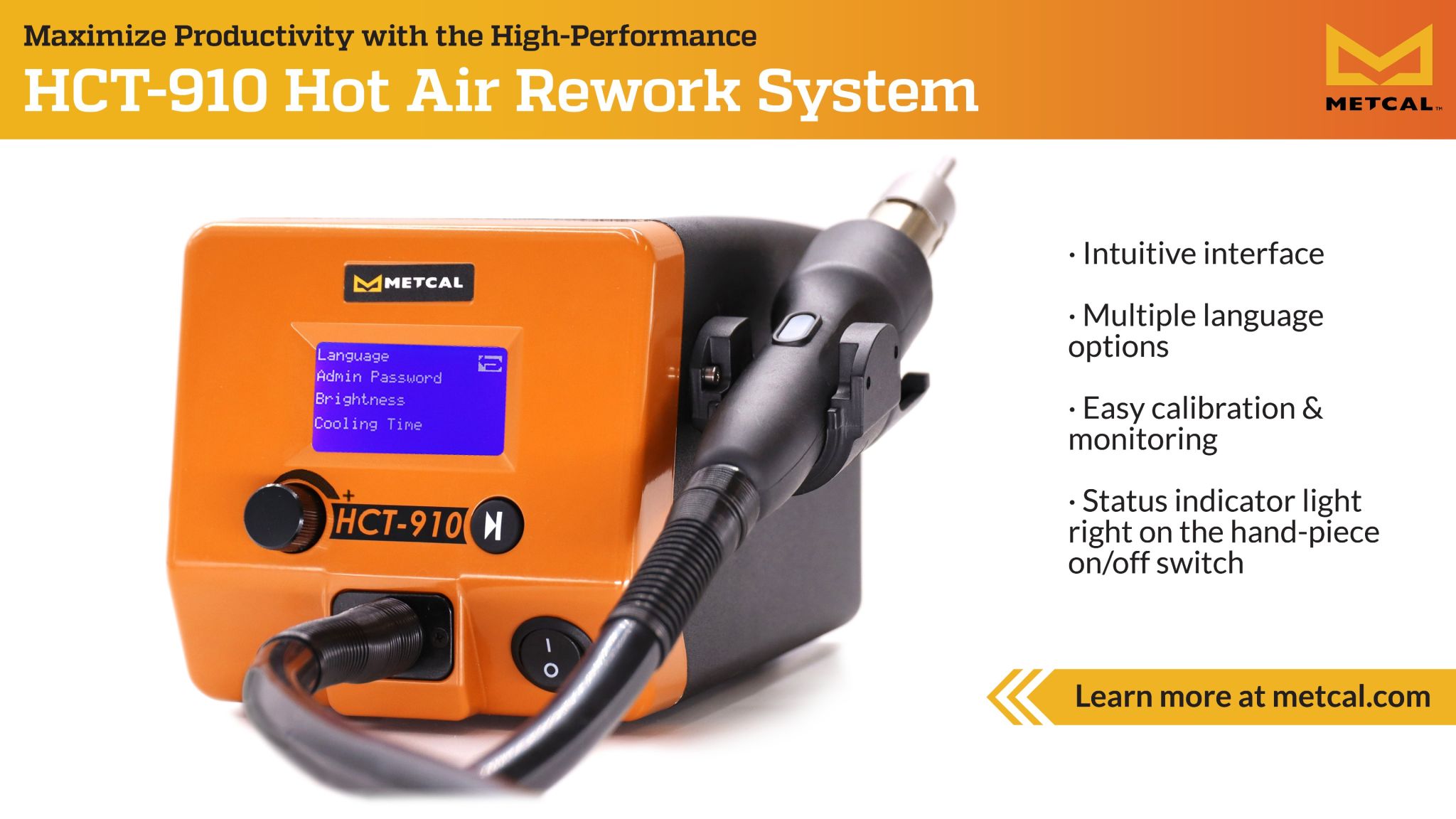

METCAL- Hot Air Convection System HCT-910
900-Watt Hot Air Convection System, 115V
Description
The HCT-910 Hot Air Rework System is a high-performance, versatile solution for a wide variety of production and rework challenges. It has a compact, robust design including a digital display and encoder button with real-time temperature and airflow controls. The easy-to-use interface, quick change nozzles, and illuminated start/stop button allow operators to maximize productivity in a safe environment.
Specifications
| Input Voltage: | 115 VAC, 60 Hz |
| Power: | 900 W |
| Temperature Range: | 50 - 600 °C (122 - 1112 °F) |
| Temperature Accuracy: | ± 30 °C (54 °F) |
| Airflow: | At 300 °C, 5 - 120 l/min (0.2 - 4.2 cfm) |
| Air Pump Type: | Blower |
| Hose Length (Panel-Handpiece): | 1.2 m (3.9 ft) |
| Noise Level: | < 46 dB (A) |
| Surface Resistivity: | Unit: 105 - 106 Ω Hand-Piece & Tube: 107 - 1011 Ω |
| Dimensions (W x D x H): | 21 x 14 x 14 cm (8.3 x 5.5 x 5.5 in) |
| Weight: | 2 kg (4.4 lb) |
| Pollution Degree Category: | II |
| Storage Temperature: | 0 - 60 °C (32 - 140 °F) |
| Certifications/Markings: | cTUVus, CE, RoHS |
| Warranty: | 1 Year |
Features and Benefits
- Versatile 900-watt hot air rework tool for soldering and desoldering applications
- Max temperature of 600 °C (1112 °F)
- Max airflow up to 120 l/m (4.2 cfm)
- Digital controls for both airflow & temperature for increased precision
- On-the-fly manual mode - quickly toggle between temperature and flowrate
- Handpiece start/stop button & status light
- Tool-less nozzle removal & replacement
- ESD compliant
- TUV certified, CE listed, RoHS
Product Comprise of
- HCT-910 Base Unit
- 5.0 mm Ø Bayonet Nozzle
- Handpiece Cradle
- Power Cord
