MX-500P Soldering Station (Black, China, Plastic)

Code: MX-500P

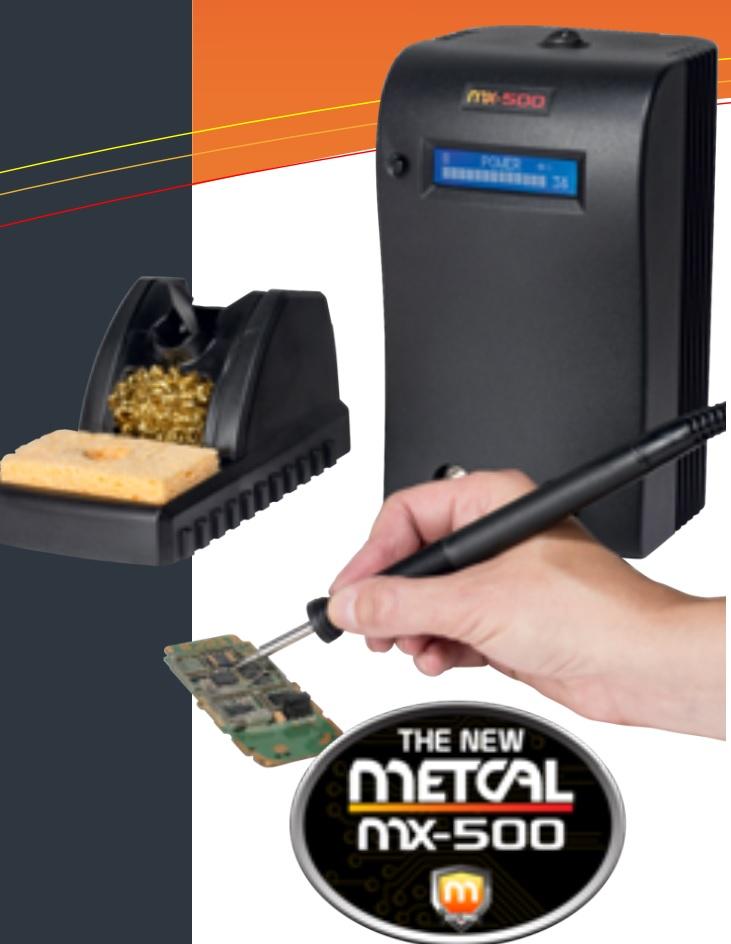

MX-500P Soldering Station

Color: Black

Material: Plastic

Origin: China

Add product to cart

MX-500P Soldering Station

Ambient Operating Temperature 10 to 40°C
Maximum Enclosure Temperature 55°C
Input Line Voltage 100 – 240 VAC, grounded circuit
Input Line Frequency 50/60 Hz
Rated Power Consumption 70 Watts
Output Power 40 Watts max. *
Output Frequency 13.56 MHz *
Power Supply Dimensions w x d x h 12.1cm (4.8”) x 12.1cm (4.8”) x 22.2cm (8.8”)
Certification / Marking cNRTLus, CE
Tip-to- Ground Potential <2mV
Tip-to-Ground Resistance <2 ohms
Idle Temperature Stability ± 1.1°C in still air 13.56 MHz
Hand-piece Cable Length L=183cm (72”), burn proof, ESD safe
Hand-piece Connector F connector 183 cm (72") SJT
Weight of the power supply 2.65 Kg (5.85 lbs)

Power Supply:

Input Line Voltage:	100 - 240 VAC
Input Line Frequency:	50/60 HZ
Power Consumption:	65 Watts maximum
Output Power:	60 Watts maximum
Output Frequency:	450 KHz
Dimensions (approx.) W x D x H:	90mm (3.5") x 200mm (8") x 152.5mm (6")
Weight:	2.3kg (5.05 lbs)
Idle Tip Temperature Stability:	+/- 1.1°C (2°F) in still air
Ambient Operating Temperature:	10 - 40°C (50°F - 104°F)
Maximum Enclosure Temperature:	55°C (131°F)
Tip to ground Potential:	<2 Ohms
Surface resistivity:	10⁵ – 10⁹ Ohm
Approvals cTUVus	CE
Hand-piece Cable Length:	L=122cm (48"), burn resistant, ESD safe

Power Cord (3-wire):	183 cm 18/3 SJT
Solder Hand-piece cable length:	152 cm (60"), burn proof, ESD safe
Hand piece connector:	8 pin power connector
