QUICK - Solder tips 303 series

QUICK - Solder tips 303 series

Applied to soldering station:
Quick 303/303B soldering station

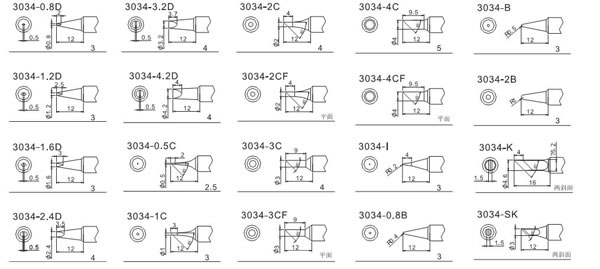

Model options(25 types):

303-0.8D soldering tip,303-0.5C soldering tip,
303-3CF soldering tip,303-I soldering tip;

303-1.2D soldering tip,303-0.8C soldering tip,
303-4C soldering tip,303-0.8B soldering tip;

300-1.6D soldering tip,303-1C soldering tip,
303-4CF soldering tip,303-B soldering tip;

303-2.4D soldering tip,303-2C soldering tip.
303-5C soldering tip;303-2B soldering tip;

303-3.2D soldering tip,303-2CF soldering tip,
303-5CF soldering tip;303-SKU soldering tip;

303-4.2D soldering tip,303-3C soldering tip,
303-SK soldering tip;303-LSKU soldering tip;

303-K soldering tip

Power Supply:

Input Line Voltage:	100 - 240 VAC
Input Line Frequency:	50/60 HZ
Power Consumption:	65 Watts maximum
Output Power:	60 Watts maximum
Output Frequency:	450 KHz
Dimensions (approx.) W x D x H:	90mm (3.5") x 200mm (8") x 152.5mm (6")
Weight:	2.3kg (5.05 lbs)
Idle Tip Temperature Stability:	+/- 1.1°C (2°F) in still air
Ambient Operating Temperature:	10 - 40°C (50°F - 104°F)
Maximum Enclosure Temperature:	55°C (131°F)
Tip to ground Potential:	<2 Ohms
Surface resistivity:	10⁵ – 10⁹ Ohm
Approvals cTUVus	CE
Hand-piece Cable Length:	L=122cm (48"), burn resistant, ESD safe

Power Cord (3-wire):	183 cm 18/3 SJT
Solder Hand-piece cable length:	152 cm (60"), burn proof, ESD safe
Hand piece connector:	8 pin power connector
